The Most Popular Data Warehouse Schemas

Explore the backbone of data organization with our article on data warehouse schemas. Learn about schema structures, best practices, and more.

Section

At the heart of every data warehouse lies a schema. But data warehouse schemas are more than technical blueprints. They encapsulate an organization's business logic and analytical requirements, translating complex data relationships into a structured format that supports efficient querying and reporting.

Understanding data warehouse schemas is fundamental for anyone designing, implementing, or using a data warehouse. Schemas are the linchpins that ensure data within the warehouse is structured to support efficient storage, retrieval, and analysis, ultimately enabling organizations to leverage their data for strategic decision-making.

Let’s go through what data warehouse schemas are, the most common types, and how you can integrate schemas into your data warehouse.

What is a data warehouse schema?

A data warehouse schema describes how data is organized, stored, and related. The schema serves as the template for constructing and populating a data warehouse, dictating the structure of data tables, their relationships, and the rules governing data integrity and consistency.

The necessity for schemas in data warehousing stems from the need to integrate data from various source systems into a cohesive, query-optimized format. This integration process involves standardizing data formats, resolving inconsistencies, and defining transparent relationships between data elements. Schemas provide a systematic approach to this integration, enabling data from disparate sources to be combined in a way that supports comprehensive, cross-functional analysis.

Without a well-defined schema, a data warehouse becomes a disorganized repository, making data retrieval inefficient and analysis unreliable. By carefully designing the schema, organizations ensure that their data warehouse reflects their operational realities and is optimized for the analytical queries that will be performed most frequently.

The key components of a data warehouse schema

Fact tables, dimension tables, attributes, and relationships – these are key components within a data warehouse schema that support the efficient storage, retrieval, and analysis of large volumes of data.

Fact tables

Fact tables are the central component of a data warehouse schema, primarily designed to store quantitative information for analysis and reporting. These tables contain measurable, numerical data known as facts and foreign keys related to dimension tables. Fact tables support storing data related to business events, such as sales transactions, and are often large due to the volume of transactions they capture.

Dimension tables

Dimension tables contain descriptive attributes or fields that categorize and provide context to the numerical facts in the fact tables, making the data meaningful and accessible. They are used for filtering, grouping, and labeling data. Examples of dimension tables include dates, products, or customers. Dimension tables are typically smaller than fact tables and provide a textual reference to the facts, making the data warehouse user-friendly.

Attributes

Attributes are the data elements that describe the instances in a dimension table, providing additional details. For example, attributes in a customer dimension table might include customer ID, name, address, and phone number. Attributes are used to search, filter, and classify data within the warehouse.

Primary keys

A primary key is a unique identifier for each record in a table. It ensures that each record can be uniquely identified, preventing duplicate entries. In dimension tables, primary keys are crucial for uniquely identifying each dimension member, whereas, in fact tables, they might consist of a composite key made up of several foreign keys that together provide a unique identifier for each fact record.

Foreign keys

Foreign keys are columns in a fact table that uniquely identify a row in a dimension table, creating a link between the fact and dimension tables. These keys enable the relational database management system (RDBMS) to maintain referential integrity by ensuring each foreign key value matches a primary key value in the dimension table. This relationship allows for the efficient organization and retrieval of related data across tables.

Relationships

Relationships in a data warehouse schema define how data in one table is related to data in another, typically between fact and dimension tables. These relationships are established through primary and foreign keys, allowing users to perform complex queries that join data across multiple tables. Relationships enable the analysis of facts within the context provided by dimensions.

Constraints

Constraints are rules enforced on data columns in a table to ensure data integrity and accuracy. These include primary key constraints (providing unique values for the column), foreign key constraints (ensuring valid references to another table), and check constraints (ensuring that data in a column meets certain conditions). Constraints help maintain the reliability of the data within the warehouse.

Hierarchy

Hierarchy in a data warehouse refers to the levels of data categorization within dimension tables, providing a means to drill down or roll up through different layers of data aggregation. For example, a time dimension might have a year, quarter, month, and day hierarchy. Hierarchies are essential for supporting various levels of data analysis and reporting.

Aggregated data

Aggregated data refers to data that has been summarized or rolled up from detailed data to a higher-level summary. This is often done in fact tables to provide quicker access to summary data for reporting and analysis, such as totals, averages, or counts. Aggregation helps improve query performance and aids in analyzing trends over time.

Indexes

Indexes are data structures that improve the speed of data retrieval operations on a database table by providing quick access to rows. Indexes are vital in data warehouses due to the large volume of data and the need for quick retrieval times for complex queries. While indexes improve read performance, they can add overhead to data insertion and update operations, so their use must be balanced with overall system performance needs.

Below, we explain the key features of some of the most popular data warehouse schema designs.

Star Schema

The Star Schema is a fundamental data warehousing design that organizes data into one or more fact tables referencing any dimension tables directly linked to the fact table. This schema is named for resembling a star, with the fact table at the center and the dimension tables radiating outwards.

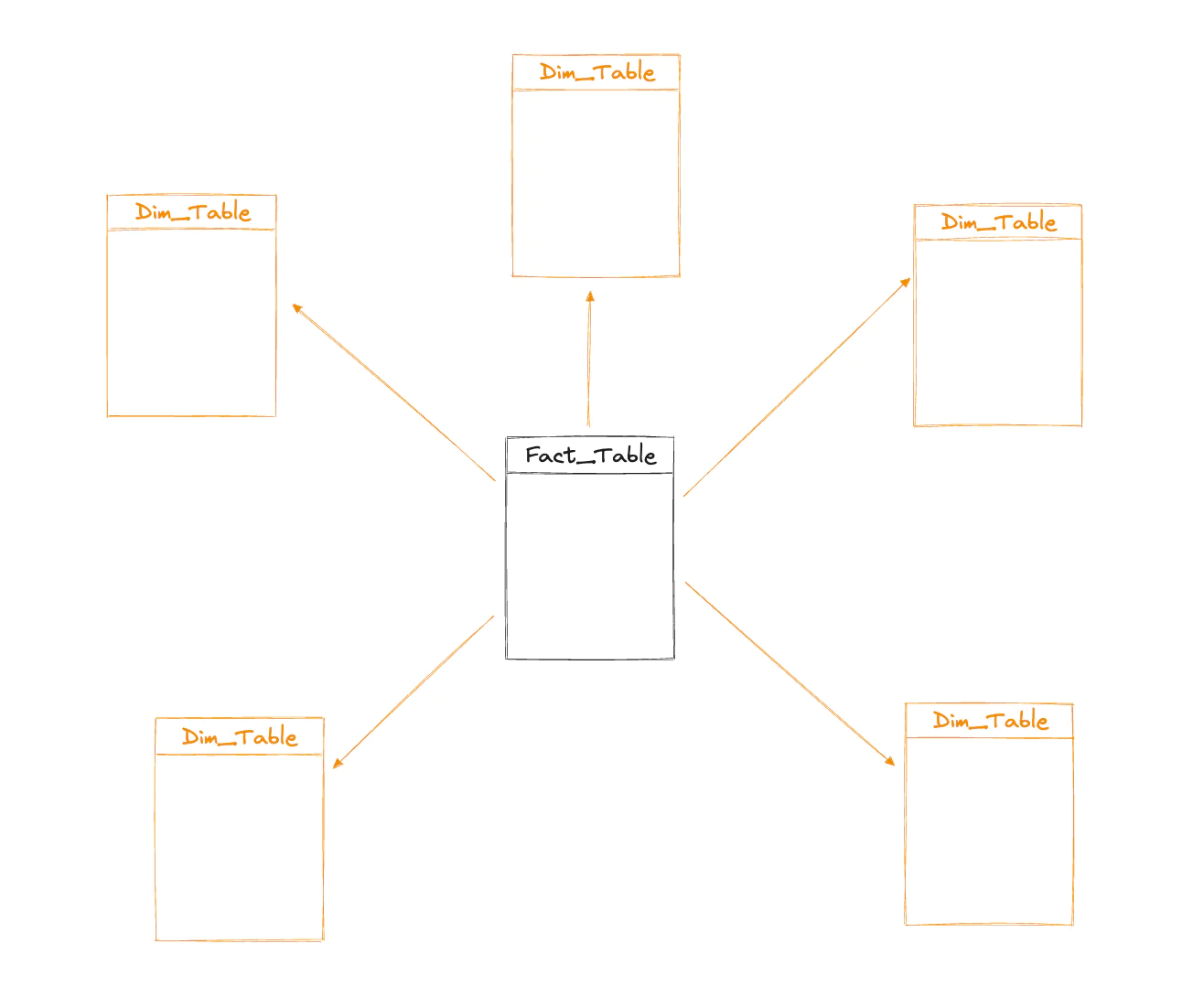

Star Schema



The Star Schema is designed to optimize query performance and simplify the design of databases by making them more understandable and navigable.

The fact table is at the core of the Star Schema and stores quantitative data (facts) for analysis and reporting. Facts represent measurable, numeric data points relevant to a business process or event, such as sales transactions. The level of detail stored in the fact table, known as granularity, is a critical design consideration. Granularity determines how detailed or summarized the data is; for example, it could be at the transaction level, daily summary level, etc.

Dimension tables store contextual information related to the facts, providing descriptive attributes that categorize, summarize, and help analyze the fact data. Typical dimensions include time, geography, products, and customers. Dimension tables are designed to be straightforward and user-friendly, often denormalized to optimize read operations and simplify reporting. Denormalization means the data is intentionally redundant, which can increase performance for read-heavy operations typical in data warehousing scenarios.

Characteristics of Star Schema

  • Simplicity: One of the key advantages of the Star Schema is its simplicity. The straightforward design makes it easy for users to understand and navigate the database, facilitating faster query development and data analysis.

  • Performance: Star Schema is optimized for querying large data sets, allowing efficient data retrieval. This is achieved through the denormalized structure of the dimension tables, which reduces the number of joins needed to execute queries.

  • Flexibility: It supports a wide range of queries and is suitable for many business data analysis needs. Analysts can easily aggregate data across various dimensions to gain insights at different levels of granularity.

The Star Schema is particularly well-suited for reporting and analytical applications where speed and simplicity are crucial. It is commonly used in business intelligence (BI) applications, dashboards, and reporting tools.

Snowflake Schema

The Snowflake Schema is an advanced data warehousing schema that extends the Star Schema. It is distinguished by its more complex structure, achieved through the normalization of the dimension tables. This normalization involves breaking down the dimension tables into multiple related tables, creating a structure that resembles a snowflake when visualized, hence the name “Snowflake Schema.”



Snowflake schema



This schema is designed to optimize data storage and improve the maintainability of the database by reducing redundancy.

Like the Star Schema, the Snowflake Schema centers around one or more fact tables that store quantitative metrics relevant to the business, such as sales figures or transaction volumes. These tables contain foreign keys linking to dimension tables. The fact table in a Snowflake Schema also defines the granularity of the data. It includes primary keys for unique identification and foreign keys referencing the more granular dimension tables.

Unlike the Star Schema, dimension tables in the Snowflake Schema are normalized into multiple levels. This means a main dimension table might link to other tables that provide additional detail. For example, a Product dimension could be broken down into tables for Product Category and Product Details. This normalization reduces data redundancy by storing each piece of information in only one place, making the schema more efficient in storage.

Characteristics of the Snowflake Schema

  • Complexity: The Snowflake Schema is more complex than the Star Schema due to its normalized dimension tables. This complexity can make the schema harder to understand and navigate for users unfamiliar with its structure.

  • Storage Efficiency: By reducing redundancy through normalization, the Snowflake Schema can be more storage-efficient than the Star Schema, potentially leading to cost savings in environments where storage costs are a concern.

  • Query Performance: The increased number of joins required to query a Snowflake Schema can potentially impact query performance. However, this impact may be mitigated by the reduced size of the dimension tables, which can speed up some operations.

The Snowflake Schema is particularly well-suited for scenarios where storage efficiency is critical and the data is inherently hierarchical, requiring a more detailed level of analysis. It is often chosen in environments where the complexity of data relationships and the need for data integrity justify the additional complexity in schema design.

Galaxy Schema

The Galaxy Schema represents an advanced and versatile data modeling technique for data warehouses. This schema structure is an extension of the Star and Snowflake schemas, designed to support complex analytical scenarios by accommodating multiple fact tables that share dimension tables.



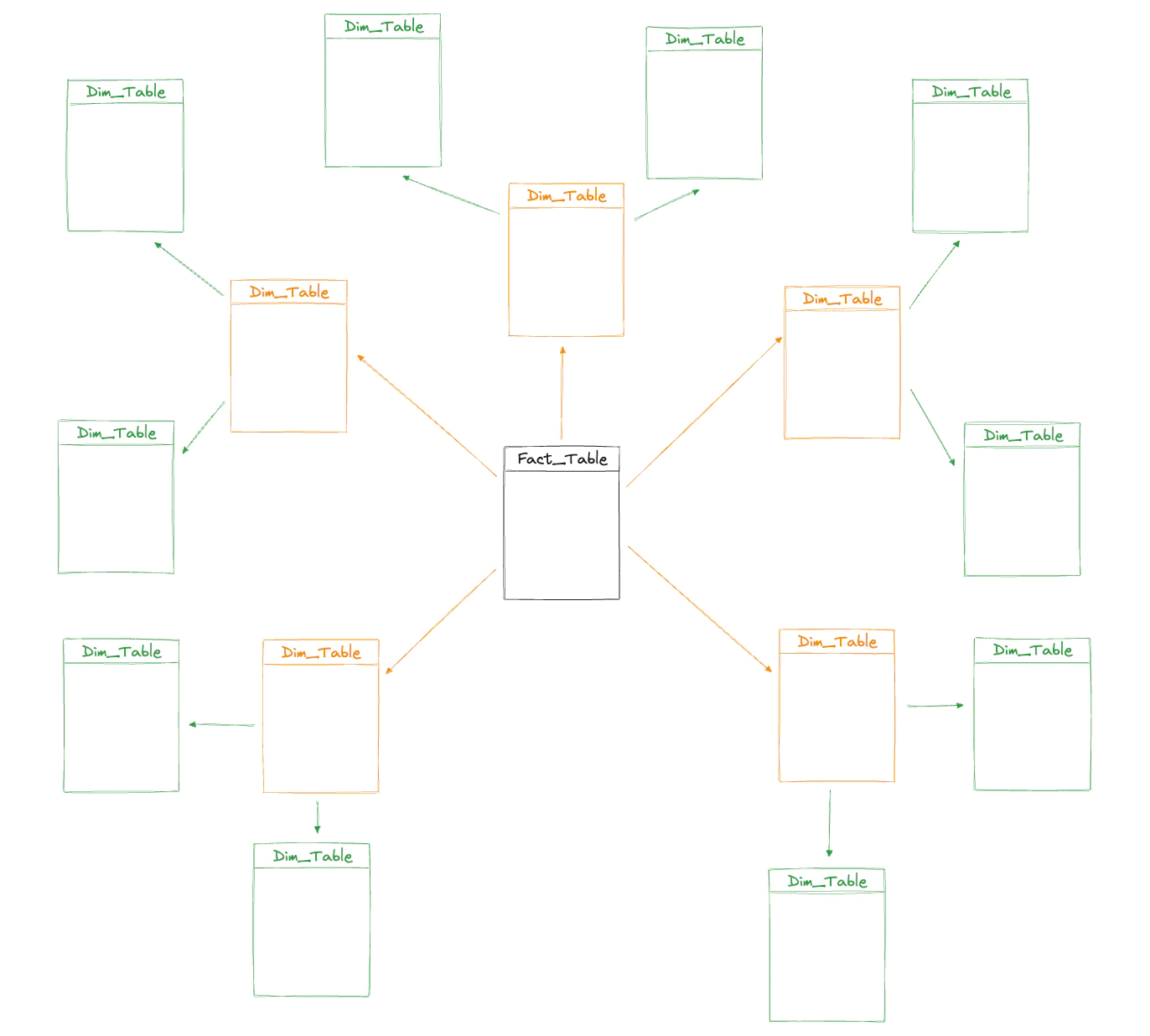

Galaxy schema



The hallmark of the Galaxy Schema is its support for multiple fact tables, each representing different business events or processes, such as sales, inventory, and shipping. This allows for a comprehensive analysis across various aspects of the business. Fact tables in the Galaxy Schema can share dimension tables, which enables cross-functional analysis. For example, the sales and inventory fact tables might link to the same time and product dimensions, allowing for integrated insights.

Dimension tables in the Galaxy Schema are often conformed, meaning they are designed to be shared across multiple fact tables. This requires careful planning to ensure that the dimensions accurately reflect the needs of all related fact tables. Like the Snowflake Schema, dimension tables in the Galaxy Schema can be normalized to reduce redundancy and improve storage efficiency, although this is not a strict requirement.

Characteristics of the Galaxy Schema

  • Complexity and Flexibility: The Galaxy Schema is more complex due to its multiple fact tables and shared dimensions. However, this complexity offers unparalleled flexibility in querying and analysis, supporting various business questions.

  • Analytical Power: With its ability to integrate data from various business processes, the Galaxy Schema is exceptionally powerful for conducting comprehensive analyses spanning different business areas.

The Galaxy Schema is ideal for organizations that require sophisticated analytical capabilities, such as combining financial, operational, and customer data for multi-faceted analysis. It is particularly beneficial when business processes are interrelated and analysts need to perform cross-functional queries.

What to consider when designing a data warehouse schema

Designing a data warehouse schema requires careful consideration to ensure it meets the organization's analytical and business intelligence needs. This means understanding what questions the business needs to answer and what data analysis will be performed. From there, the design process needs to move to data sources and quality:

  • Identify where the data comes from, including internal systems and external sources. This affects how data will be integrated and transformed.

  • Assess the quality of the source data. Data cleansing and transformation may be necessary to ensure accuracy and consistency in the warehouse.

  • Consider how the data volume is expected to grow. The schema must scale to accommodate this growth without significant performance degradation.

  • Design the schema with query performance in mind, optimizing for the most common and critical queries to ensure they run efficiently.

  • Determine how historical data will be managed in the warehouse, including tracking changes over time. This may influence the structure of dimension tables and the design of fact tables.

When you understand your data well, you can choose your schema type–Star, Snowflake, or Galaxy. You can then take what you’ve learned from your data and decide on the granularity of data in the fact tables, balancing between the need for detailed analysis and the storage and performance implications of very granular data.

Segment and the data warehouse

Segment supports integration with leading data warehouse solutions, including Amazon Redshift, Google BigQuery, and Snowflake. This integration allows businesses to aggregate customer data into a single source of truth, enabling more complex analyses and insights than possible through disparate data sources.

Segment's approach to schema management in data warehouses is designed to reduce the complexity and overhead associated with organizing data for analysis. It automatically generates and manages the schema based on the events and properties tracked by Segment, ensuring that data is stored in an organized, accessible manner.



Data warehouse schema

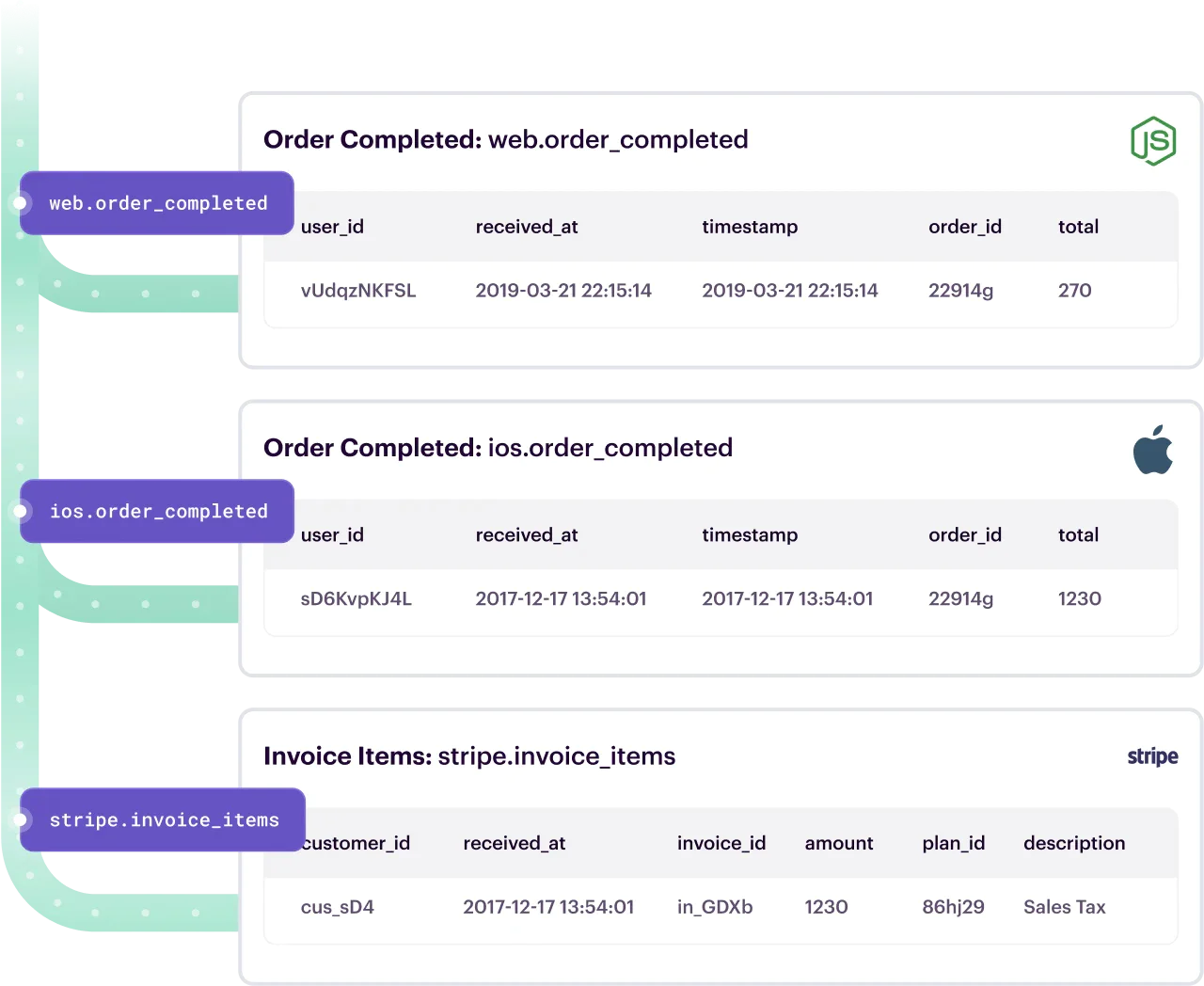

When data is sent to Segment, tables and fields within the data warehouse are automatically created based on the event names and properties. As new events or properties are tracked, Segment dynamically adjusts the schema to accommodate this new data without requiring manual schema updates. Businesses can modify the schema to better fit their analytical needs by creating custom views or aggregations that simplify analysis.

Segment's integration with leading data warehouse technologies and its dynamic schema management approach provide the flexibility to scale and evolve with business needs.




Interested in hearing more about how Segment can help you?

Connect with a Segment expert who can share more about what Segment can do for you.

Please provide your company email address.
Please enter a valid email address.
Please provide an individual corporate email address.
Please provide a valid full name.
Please provide your phone number.
That phone number is too short.
That phone number is too long.
Please provide a valid phone number.

For information about how Segment handles your personal data, please see our privacy policy.

Thank you, you're all set!

We'll get back to you shortly. For now, you can create your workspace by clicking below.

Thank you for submitting your request for a demo! Answer 4 more questions to help us pinpoint exactly what your team needs to get started with Segment.

Please provide a valid job title.
Please provide a company size.
Please provide the estimated web traffic.
Please provide a timeline.

For information about how Segment handles your personal data, please see our privacy policy.


Frequently asked questions

The three main schemas used are mentioned above:

  • Star Schema: A straightforward schema consisting of a single, central fact table containing measurable quantities and foreign keys relating to numerous dimension tables that store descriptive attributes. This structure is optimal for simple queries and fast data retrieval.

  • Snowflake Schema: An extension of the Star Schema where dimension tables are normalized into multiple related tables, reducing data redundancy but increasing complexity due to more joins. It's more efficient in storage and can improve performance for specific queries.

  • Galaxy Schema: Supports multiple fact tables that share dimension tables suitable for complex analyses across various business processes. This schema can represent complex business models by accommodating different fact tables related through shared dimensions.

There are a few more specialized schemas used in some instances:

  • 3NF (Third Normal Form) Schema: Focuses on normalization to the third normal form to eliminate data redundancy and ensure data integrity, often used in operational data stores or as part of the data staging process in data warehousing.

  • Hybrid Schema: Combines elements of both the Star and Snowflake schemas, aiming to balance the simplicity and performance of the Star Schema with the storage efficiency and flexibility of the Snowflake Schema. This approach tailors the data model to specific business requirements.

  • Data Vault Model: Designed for enterprise data warehouse environments, it features a detailed historical tracker of data, incorporating multiple layers for linking disparate data, managing business keys, and storing the historical context of data. It's highly adaptable and suitable for managing large-scale, complex data from various sources.

Schema-on-write requires defining the data structure before storing data, ensuring consistency and integrity by enforcing a predefined schema upon data insertion. It's ideal for relational databases where structured query capabilities and data integrity are crucial but less flexible for evolving data needs.

Schema-on-read, conversely, stores data without predefined schema, applying structure only when the data is read or queried. This approach offers flexibility for unstructured or semi-structured data in big data ecosystems and data lakes, accommodating rapid changes in data types and sources, albeit at the potential cost of query performance and data quality due to the lack of upfront schema enforcement.

Designing a data warehouse schema involves understanding business requirements and analytical needs to choose between Star, Snowflake, or Galaxy schema types. Key steps include identifying critical business processes, defining fact tables for measurable metrics, and dimension tables for descriptive context. Consider data granularity, ensure scalability for future growth, and plan for efficient ETL processes.

Optimize for query performance and data integrity by carefully selecting indexes and managing data history. Flexibility to adapt to business changes and comprehensive documentation are essential. The choice of schema impacts data organization, query efficiency, and overall warehouse performance, necessitating a balance between normalization for storage efficiency and denormalization for query speed.
